6 Series B MSO Mixed Signal Oscilloscope
6 Series B MSO Mixed Signal Oscilloscope
Troubleshoot and validate high-speed designs with bandwidth that starts at 1 GHz and goes up to 10 GHz . Get accurate measurements with low noise and sample rate up to 50 GS/s . See more of your design with 6- and 8-channel models.
Lowest noise. More detail.
See signal details you couldn’t see before.
-
Lowest input noise enabled by new TEK061 front-end ASICs
-
12-bit resolution at 5 GHz and up to 16-bit resolution at 200 MHz
-
< 55 µV of noise at 1 mV/div and 1 GHz
-
< 1.25 mV of noise at 50 mV/div and 10 GHz
Synchronized multi-channel spectrum analysis
Unlock exciting capabilities with 4, 6 or 8 channels of spectrum analysis, and hardware digital downconverters (DDCs) in parallel with time domain signal processing.
-
Any analog channel can be viewed as a waveform, spectrum, or both
-
Plot and trigger on changes in RF frequency or magnitude
-
Spectrums and time domain waveforms are synchronized to correlate RF and time domain events
-
Spectrum controls such as center frequency and RBW are completely independent of time domain controls
Latest firmware update
Version: 2.22.7
Check out the latest new features:
-
External CD/DVD drive peripheral support added to Linux-based 6 Series B MSOs
For instruments with advanced analysis options:
-
Advanced Jitter Analysis (opt. DJA): New SJ@Freq Measurement measures sinusoidal jitter at specified frequency for PLL and jitter tolerance analysis.
-
3-Phase Inverter Motor Drive Analysis (opt. IMDA): Sin-Cos Sensor input now supported in DQ0 and all mechanical measurements to correlate rotational position.
-
Wide Bandgap – Double Pulse Test Analysis (opt. WBG-DPT): Parallel Topology Analysis now includes Overshoot, Undershoot, and Damping Factor
Fidelity begins at the probe tip
With 4, 6 or 8 FlexChannel® inputs you can browse your circuits with the included 1 GHz probes. Connect high performance single-ended active probes or differential probes, or do both at once with TriMode probes. Connect a TLP058 logic probe and get 8 digital channels on any FlexChannel input to expand your system visibility.
-
Built-in 1 MΩ and 50 Ω input terminations
-
1 GHz low-loading passive probe for each input, included
-
TekVPI probe interfaces with 10W of probe power per channel for differential, current, power rail, and optically isolated probes
-
TDP7700 Series 4, 6, 8 and 10 GHz TriMode probes -- perfect for measuring high-speed communications
Collaborate, Analyze, and Automate—Anywhere
Get fast, repeatable results and access your data from anywhere with powerful collaboration and automation tools.
-
TekScope PC: Bring the same TekScope UX to your PC, so you can analyze waveforms, decode serial buses, and access oscilloscopes remotely. Upgrade for multi-scope analysis, jitter, and power measurements.
-
TekDrive: Store and share waveforms right from your oscilloscope. Experience interactive, browser-based waveform viewing and seamless automation through full API support.
-
eScope: Control your oscilloscope over any LAN with built-in eScope or Windows Remote Desktop.
-
KickStart PC Software: Simplifies data capture and logging for your entire bench including oscilloscopes, function generators, power supplies, SMUs and more.
-
dev.tek.com: Jumpstart your automation with Python packages, curated guides, examples, and more.
Specification Overview
Input Channels
4,6 or 8 FlexChannel inputs.
Each FlexChannel provides 1 analog signal input or 8 digital logic inputs with TLP0581 probe
Bandwidth 1
1, 2.5, 4, 6, 8, 10 GHz
Sample Rate
50 GS/s on 2 analog channels
25 GS/s on 4 analog channels
12.5 GS/s on > 4 analog channels
Record Length 1
Up to 1 Gpoints on 4 channels
Up to 500 Mpoints on > 4 channels
Signal Generator 1
13 standard waveform types, plus arbitrary
Digital Voltmeter 2
4 digit
Trigger Frequency Counter 2
8 digit
Display
15.6-inch (385 mm)
TFT color HD (1920 x 1080) resolution Capacitive (multi-touch) touchscreen
1 - Optional and upgradeable
2 - Free with product registration
What's in the box?
-
One TPP1000 1 GHz, low-C passive probe for each channel, with accessories
-
Front cover with accessory pouch
-
Power cord
-
Printed Installation Manual covers safety and basic operation
-
Comprehensive built-in online help
-
Certificate of traceability
-
1-year warranty on the instrument and included probes

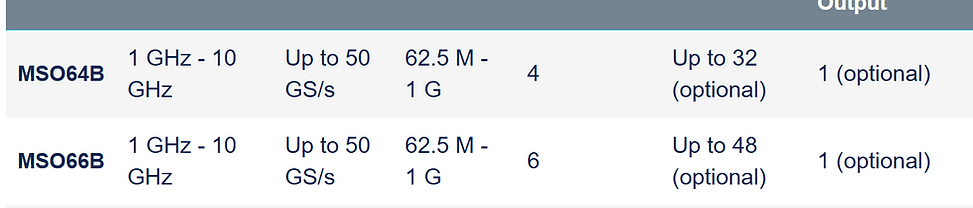

6 Series Models:
